72512_5

CLEAN & CLEAR® Cartridge Filters

FIBERGLASS REINFORCED POLYPROPYLENE TANK

Clean & Clear® Cartridge Filters feature a chemical resistant tank with no-tool servicing and a coreless cartridge for easier cleaning. All models are equipped with easy spin-on unions for plumbing hook-ups. These filters are NSF listed for commercial applications and are available in 50, 75, 100, 150, and 200 square foot sizes.

Features:

  • NSF listed
  • Unionized connections
  • Integrated continuous High Flow internal air relief*
  • Chemical resistant tank body
  • Lock ring with spring-loaded safety latches
  • Coreless cartridge for easy cleaning
  • High Flow manual air relief valve
  • 1 in. drain and wash out
  • Single piece base and body design
Note: Actual system flow will depend on plumbing size and other system components.
Note: Pentair Pool Products does not recommend flow rates above 150 GPM.
*Integrated continuous High Flow internal air relief is operational only when there is unobstructed flow in the circulating system.
Operating Limits – maximum continual opeating pressure of 50 PSI. Pool.spa (bather) applications, maximum operating water temperature (internal filter) 104 degrees F (40 degrees C)

72512_1

CLEAN & CLEAR® PLUS Cartridge Filters

FIBERGLASS REINFORCED POLYPROPYLENE TANK

Clean & Clear® Plus Cartridge Filters have a corrosion resistant injection molded filter tank featuring superior strength and reliability. The cartridge assembly uses four easy to clean, non-woven, polyester cartridges. Each filter is supplied with a bulkhead union set for easy installation.

Features:

  • NSF listed
  • Superior strength
  • Large filter area for increased dirt capacity
  • 1-1/2 in., 100% drain clean-out port
  • Continuous High Flow internal air relief*
  • Base and plumbing kits now available
  • Injection molded tank
  • Balanced hydraulic flow
  • Tension Control clamp
  • 100% factory tested
  • Black bulkhead unions
  • High Flow manual air relief valve
Note: Actual system flow will depend on plumbing size and other system components.
Note: Pentair Pool Products does not recommend flow rates above 150 GPM.
*Integrated Continuous High Flow internal air relief is operational only when there is unobstructed flow in the circulating system.
Operating Limits – maximum continual operating pressure of 50 PSI. Pool.spa (bather) applications, maximum operating water temperature (internal filter) 104 degrees F (40 degrees C)

FNSplus_filter_small

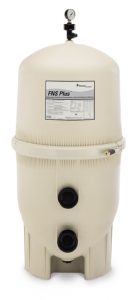

FNS® PLUS Fiberglass D.E. Filters

FIBERGLASS REINFORCED POLYPROPYLENE MATERIAL, VERTICAL GRID, D.E.

FNS® Plus Fiberglass D.E. Filters are fiberglass reinforced polypropylene of advanced chemical resistant materials for superior strength and reliability. The top manifold design features the Service-Ease grid pack for convenient one-at-a-time grid servicing.

Features:

  • Superior strength
  • Service-Ease grid pack
  • Continuous High Flow internal air relief*
  • 100% factory tested
  • Top-to-bottom backwash
  • High Flow manual air relief valve
  • Tension Control clamp
  • Black valves and plumbing
  • 1-1/2in. bottom clean out port
  • 7-1/2in. centerline bulkhead fittings
NOTE: *Integrated continuous High Flow internal air relief is operational only when there is unobstructed flow in the circulating system.
